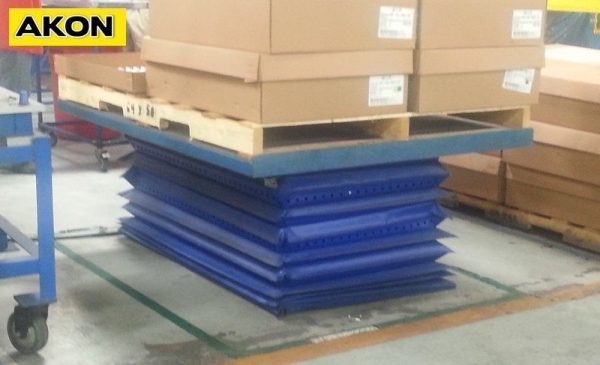

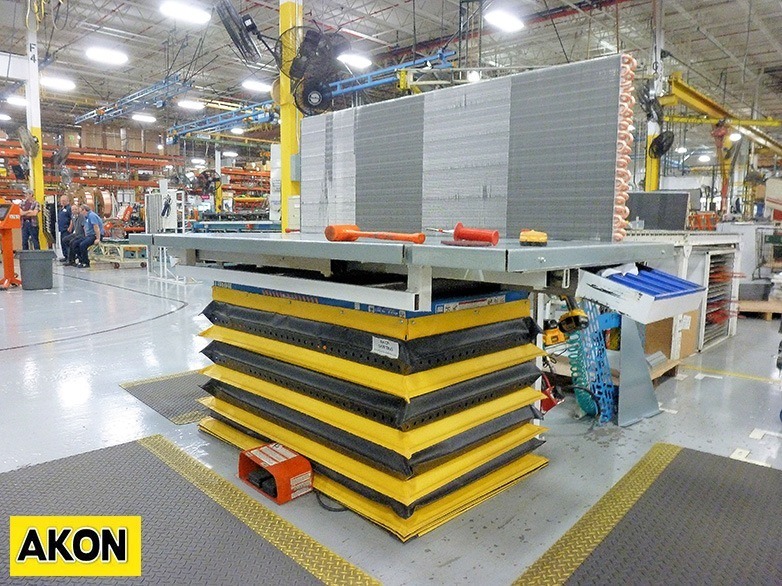

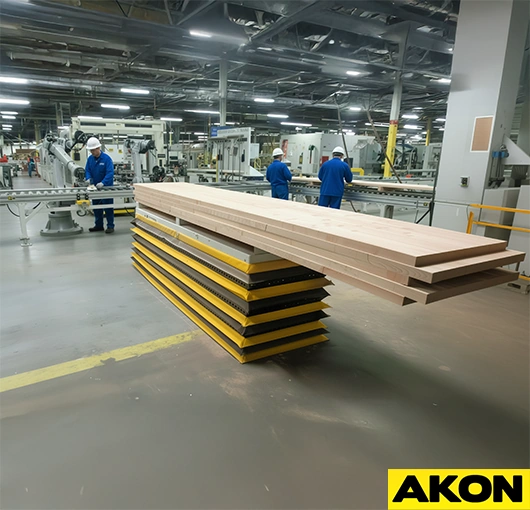

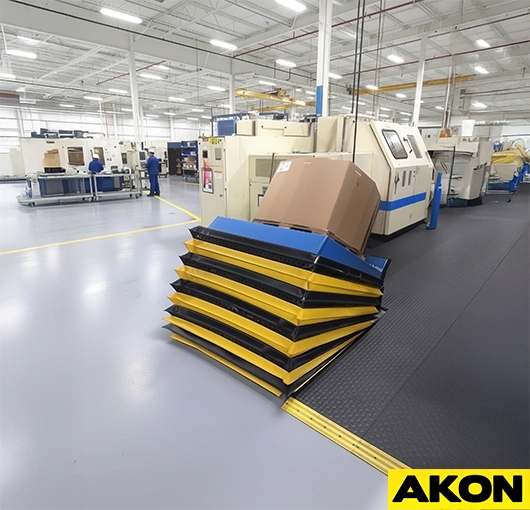

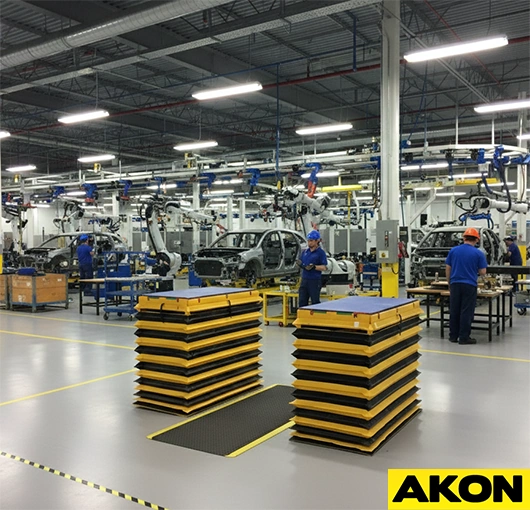

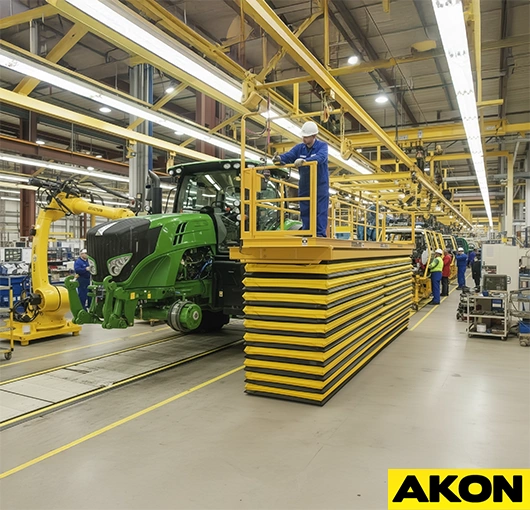

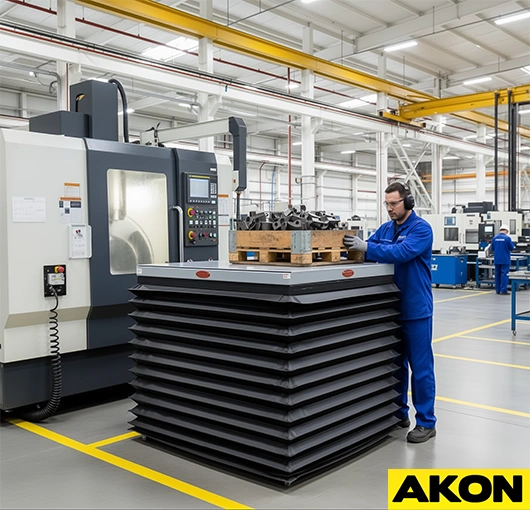

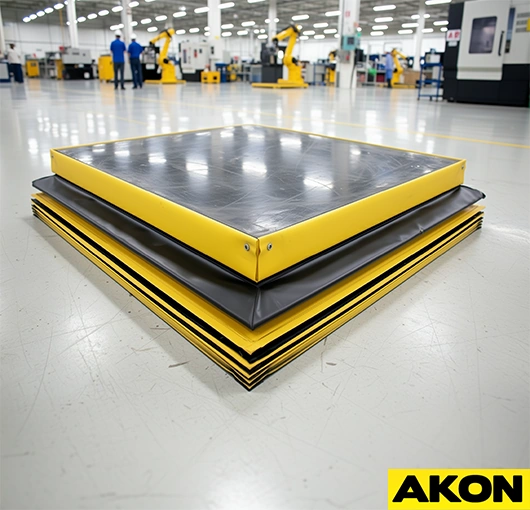

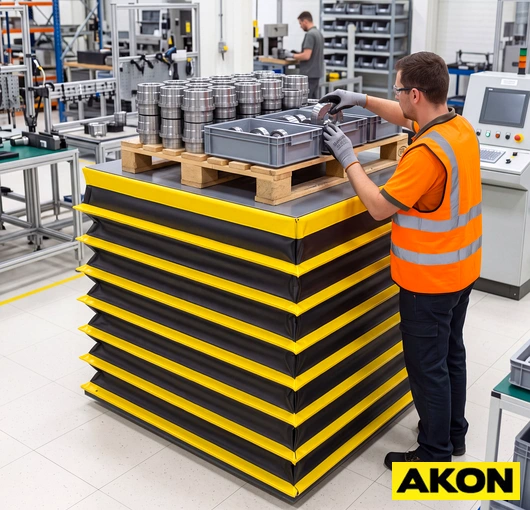

Lift Table Bellows are a long-standing solution for providing protection to dangerous scissor arms. AKON provides these lift table guards to manufacturing plants all over the world. The scissor lift table bellows can be purchased for existing tables or new tables. Simply fill in the form below with your lift table dimensions and we will ship the skirt that fits it.

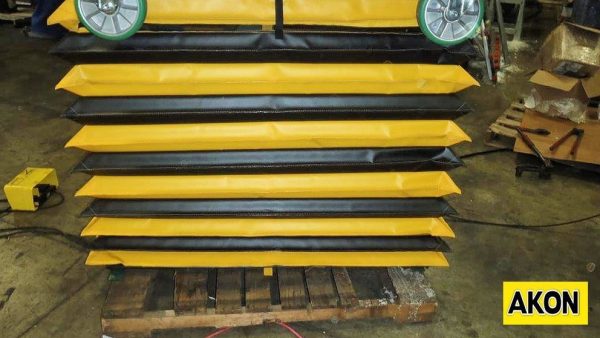

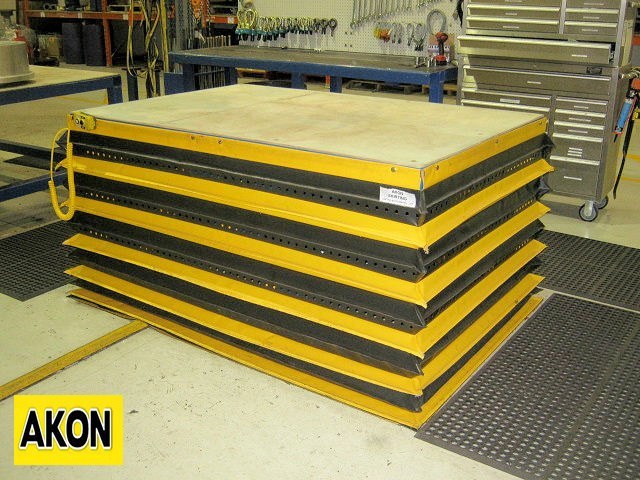

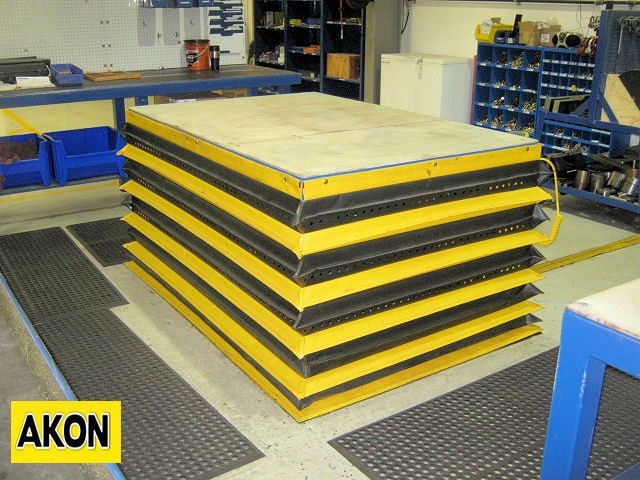

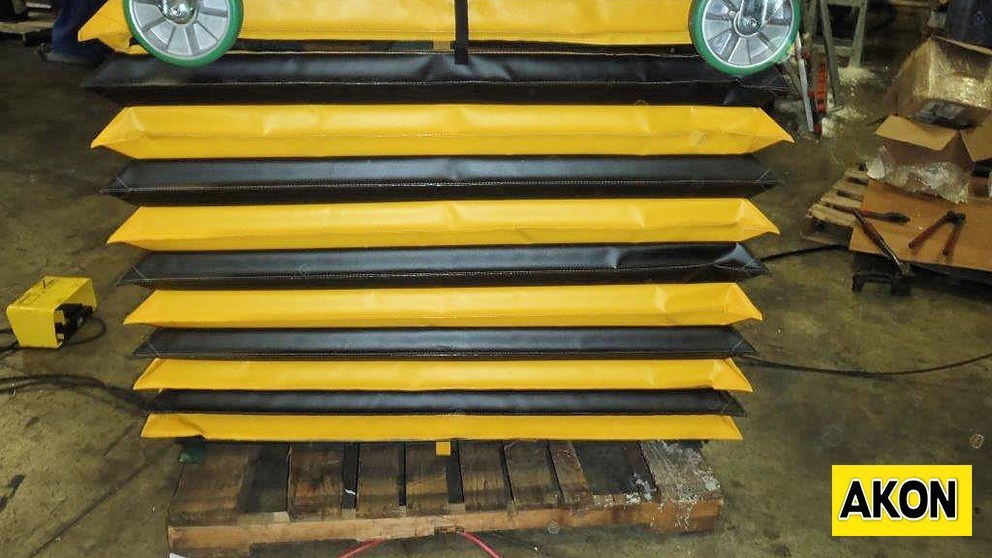

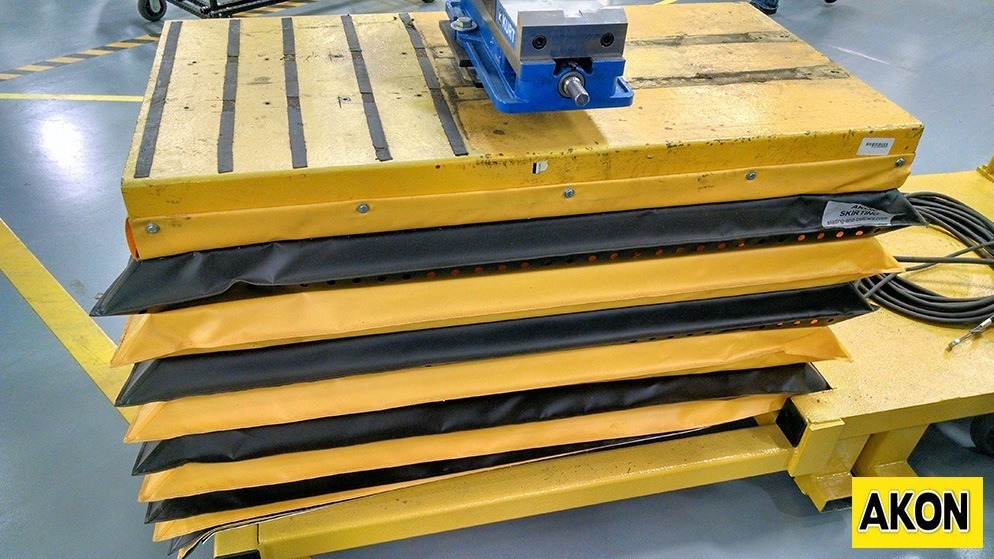

Lift Table Skirts are a long-standing solution for providing protection to dangerous scissor arms. AKON provides these lift table guards to manufacturing plants all over the world. The AKON industrial lift table skirts are made from heavy-duty 22-ounce fire retardant vinyl. The lift table skirting protects operators from the hazardous pinch points inside of scissor lift tables. The lift table guarding is quick to install, and it is available in almost any size.
Specifications
Construction: Stitched
Material: 22oz Vinyl
Fold Depth: 1.5", 2", 3"
Color: Black and Yellow
Rib Structure: Optional stiffening wires
Mounting: None, Velcro, Flat Steel Bar For Bolt on
Lead Time | Warranty
Ships in 7–10 work days
Ships UPS or FedEx parcel - Free Shipping
Skirting - 5 year warranty on manufacturing defects
Hardware - Lifetime warranty on manufacturing defects
FAQ
How does the skirt mount to the lift table?
There is a 3" flange pocket on the top and bottom of the skirt that attaches to the side of the lift table as shown below. In this pocket you will slide in a flat steel bar that we provide and use the Tek screws that are also provided to bolt the skirt to the lift table every 12". If you do not choose flat steel bar mounting then the skirt will still have the pocket for you to mount it using other methods.
Does the skirt need to attach at the bottom?
Most installations allow for the skirt to rest on the floor while only the top is attached. The weight of the skirt often is enough to keep the skirt on the floor. We also have optional weight bars for the bottom which can be ordered and added after the skirt is installed.
What is the difference between internal and external fold?
Below you can see that the folds of the bellows can face outward, or inward depending on what style you want.
Please be aware that internal fold bellows need adequate room facing inwards for the folds.
For instance, if you have a 50" x 50" top size and a 50" x 50" bottom lift table size then an internal fold will not work.
Pit lifts that are mounted in the floor generally always need an internal fold for them to work.
Internal folds have the smallest foot print for conserving space.
External folds are the most common and best option for when you are unsure that an internal fold will work.
Are there any OSHA requirements regarding scissor lift table skirts?
The Occupational Safety and Health Administration (OSHA) regulates workplace safety around pinch points to reduce occupational injuries. According to the OSHA definition, pinch points are points on presses and other workplace equipment where workers could get a finger or other body part caught between two moving parts. The OSHA warns that pinch points can cause severe injuries, including amputation, and regulates work practices for workers exposed to pinch points.
Scissor lift tables have scissors which are a very dangerous pinch points. Thus, if the lift table is not properly shrouded with a lift table skirt then OSHA will issue your facility a fine. This includes mobile scissor lift tables.
Are there any specific requirements for having skirting on scissor lift tables? Are they absolutely required?
If OSHA comes to your facility and finds a scissor lift table that is not skirted / guarded then you will most likely be fined. A scissor lift table is a pinch point hazard and industrial facilities have to guard against pinch points. In addition you are providing a safer work environment for your workers.
Can you please give us the OSHA Rule or reference that speaks about guarding of pinch points?
OSHA does not specifically call out lift tables in their documentation. Rather they call out pinch points and shear points which can be present with many different machines. These pinch points and shear point must be properly guarded to protect your personnel.
Bulk discounting is available for OEMs and distributors
Industry-leading warranties for workmanship
Easy Installation
Optional side Velcro for wrap around install
Steel flat bar for positive bolt on mounting
Top fold venting to prevent bellowing
22oz Vinyl Vs thin 18oz Vinyl used by others
True lock stitching versus traditional stitches
Any Configuration
Choose from 1,2,3,4 or more sides
Only guard the pinch point sides
Made to any size and dimensions
Single sided bellows fold neatly
Upload or use our form for a quote
