SB-5000 – Roll Up Welding Curtains

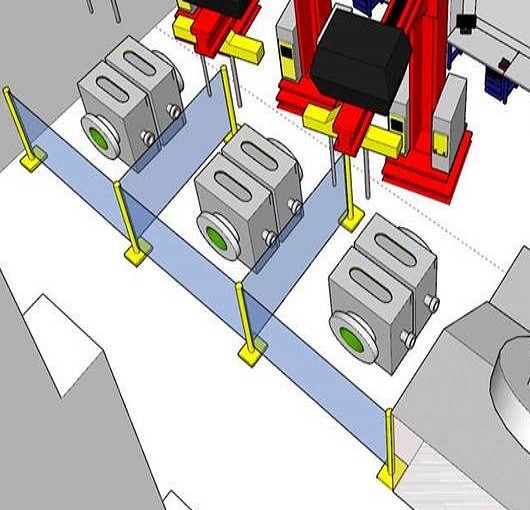

SB-5000 roll up welding curtains are lightweight, durable, portable welding screens that roll to wherever welding is being done. They are completely free-standing, so you can build almost any cell layout, and the wheels on the pedestal bases make them easy to move.

Key Benefits

  • Stocked and Ready To Ship
  • Lead Time: Ships in 7-10 working days
  • Warranty: 5 years on curtains, lifetime on hardware
  • Layout: Build almost any cell layout
  • Portable: Lightweight and easy to transport
  • Material: Durable welding screen in multiple colors
  • Setup: Shades attach with hooks
  • Custom Sizes: Available

Need a custom quote

Step 1 of 4Choose Layout
SB-5000 post styles A to F
Shade Style
Enter a number from 1 to 100.
Step 2 of 4Choose Shade Size
Shade Size
Step 3 of 4Choose Shade Color
Shade Color
Step 4 of 4Notes, Quantity and Price
Complete the selections above to see your price.
Price each$1,723.94
Quantity1
Your Price
$1,723.94
✓ FREE shipping included
Check this and we’ll email you to go over your questions before anything is made.
Specifications

SB-5000 roll up welding curtains are free-standing, portable welding screens that roll to wherever welding is being done. Wheels on the pedestal bases make them easy to move, and the modular design lets you build almost any cell layout.

Key Benefits

  • Ships in 7-10 work days
  • Free-Standing: No anchoring or overhead supports
  • Portable: Pedestals roll on wheels
  • Flexible Layout: Up to 4 shades on one pedestal
  • Springs: Rated for up to 250,000 cycles
Pedestal
Dimensions
20.40" x 20.40" x 96" tall
Weight
80 lb. without ballast, about 145 lb. with ballast
Base Pans
Weight for base pans not included
Pedestal Only
Available without shades
Springs
Rated for up to 250,000 cycles
Shade Size
Standard
5'6" high x 20' wide
Custom
Up to 6' high and 25' wide (+$280)
Attachment
  • ✓Shades attach with the supplied J-hooks
  • ✓Hook to another post or existing walls, beams, etc.
  • ✓Up to 4 shades per post

Shade Colors and Material

Standard Colors
  • ✓Semi-transparent orange
  • ✓Semi-transparent blue
Upgrade Colors (+$120)
  • ✓Semi-transparent dark green
  • ✓Semi-transparent yellow
  • ✓Semi-transparent gray
  • ✓Clear (does not block UV light)
  • ✓Opaque yellow
  • ✓Opaque blue
  • ✓Opaque green
Material
Semi-Transparent
14 mil PVC welding screen
Opaque
18 oz. PVC welding screen
Rating
Fire retardant, CFM rated
