MODEL SB-9000

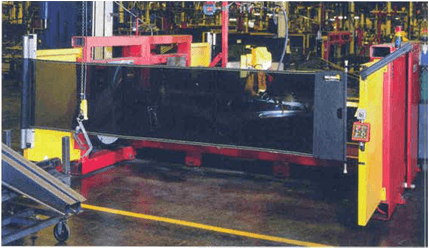

The SB-9000 The Retractable Welding Screen provides a space saving alternative to guards which rest on the floor. The safety guard is easily moved out of the way by the operator which allows material to be moved into and out of the work cell. This product is ideal where space is tight or you do not want the hassle of manually moving traditional large rigid guards. Like an old style window shade on its side, this industrial retractable weld guard has constant tension on the shade.
Collapses To Allow For Full Access
Easy Operation
- The welding screen uses tension from the roller base to keep the guard tight.
- The operator simply walks the guard from side-to-side of the work cell.
- When it is time to move material into or out of the work cell, the operator unlatches the guard, and walks it back to the roller base.
- Minimal pull force is required to extend the retractable welding scree
Retractable Welding Screens
- Eliminates the effort of man-handling large sections of stationary guards
- Conserves floor space
- Protects against welding sparks, heat, ultraviolet light and flying debris
- The retractable welding screen extends 25'
- The welding shade can be easily replaced if damaged
Innovative Design
- The spring tension roller is always taunt and automatically retracts
- When not in use the industrial retractable shade stores rolled up
- The welding screen requires no overhead suspension which allows top access
- Overhead cranes have a clear path into the work cell when rolled up
- The industrial welding screen attaches with a simple S-hook opposite the roller
The Leader In Retractable Welding Curtains
Heavy Duty Design
3 Mounting Options
Standard Mount
- Mounts to any vertical surface
- Attach to existing walls, beams or posts
- Quickly bolts for easy install
Anchored Post
- Post anchors into the cement
- Form welding cells anywhere
- 4 lag points on the base plate
Portable Post
- The welding shade is on a portable post
- The post is rolled around on the casters
- Form welding cells anywhere
Specifications
Shade Size
Standard
5'6" high x 20' wide, or 4' high x 25' wide
Custom
Up to 6' high and 25' wide (+$280)
Attachment
Hooks
Shades attach with the supplied J-hooks
Mount To
Optional post or existing walls, beams, etc.
Post Capacity
Up to 4 shades on one optional post
Shade Material
Semi-Transparent
14 mil PVC welding screen
Opaque
18 oz. PVC welding screen
Rating
Fire retardant, CFM rated
Shade Colors
Standard Colors
- ✓Semi-transparent orange
- ✓Semi-transparent blue
Upgrade Colors (+$120)
- ✓Semi-transparent dark green
- ✓Semi-transparent yellow
- ✓Semi-transparent gray
- ✓Clear (does not block UV light)
- ✓Opaque yellow
- ✓Opaque blue
- ✓Opaque green
